| Device Name: | Granulating spray dryer |
| Equipment type: | QFN -Z -5. |
| Equipment specifications: | 5Kg/h (support customization) |
| Test machine: | Support the test machine to do the experiment |
| Scope of application: | Various granules and pellets, etc. |
| Applicable scenarios: | Scientific research, chemical industry, food, pesticide, medicine and biological industry in Universities |
| Is it guaranteed? | Three-year National Warranty |
| Consultation telephone: | 17317246351 |
1. Product overview

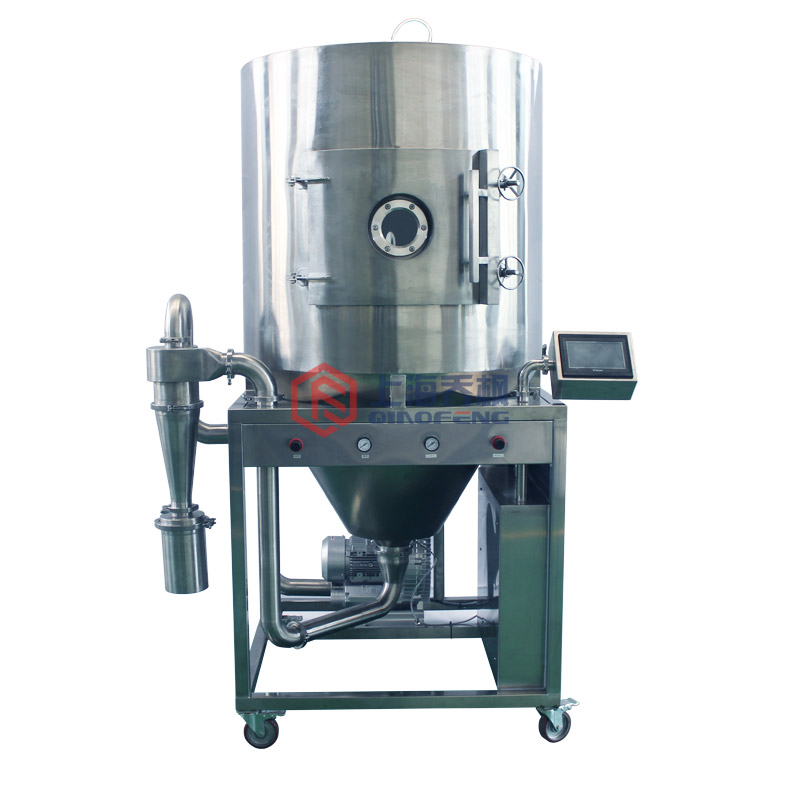

Granulating spray drying unit is a multi-purpose unit developed by many domestic and foreign advanced technology and has been widely used in chemical, light industry, food and other industries for spray drying process. The unit has the advantages of short heating time, high thermal efficiency and complete dust removal system.

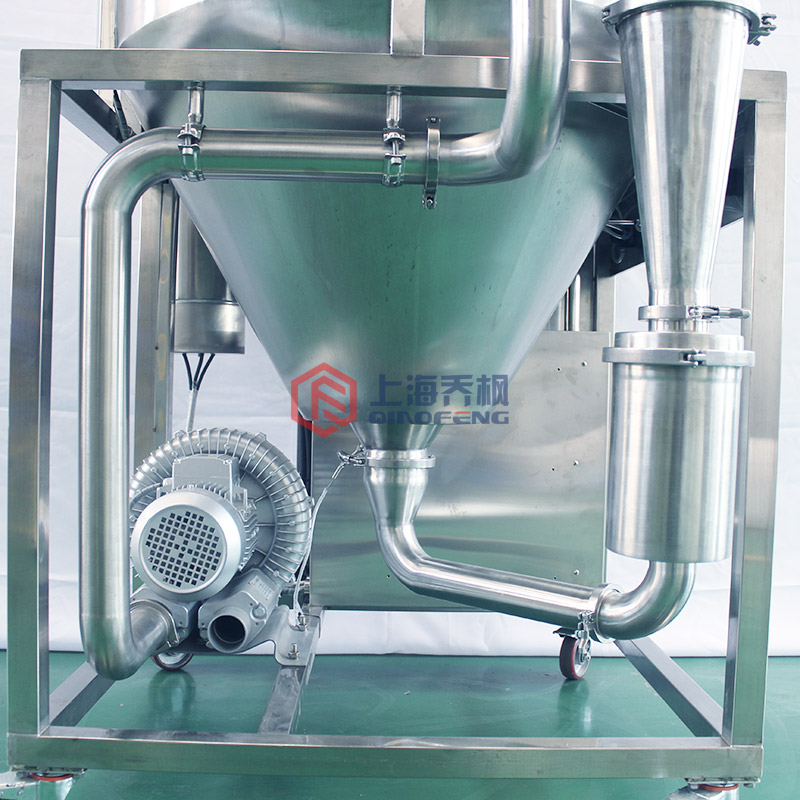

The core device of the unit is a granulating atomizer. Thereby, the liquid is atomized into micron droplets and dried rapidly by hot air. The dried particles are recovered by bottom feeding bottle and the powder is recovered by cyclone separator. The maximum design inlet temperature is 250 C, and the outlet temperature is about 145 C.
The material of drying tower body and accessories is selected by customers. The power of electric heating is about 25 KW.
The arrangement of equipment can be arranged according to the actual needs of users.
Granulating spray dryer is a set of granulating spray dryer developed by Qiao Feng, Shanghai. The QFN-ZL series granulating spray dryer (Qiao Feng exclusive) is a special double air blowing granulator spray nozzle, which is a major innovation in China. It directly transforms uniform spherical droplets into particles through uniform heat.
It can be used in experiments and small-scale production, with good precision and uniform particles. Because of its small size, the equipment can be installed in ordinary laboratories. The core parts are imported equipment, and the other parts are produced by well-known domestic manufacturers to ensure the stability and safety of products.
2. Product characteristics
3. Equipment parameters
|
Granulating spray dryer (original 9021 paragraph) |
QFN -ZL.-Five |
QFN -ZL.-Ten |
QFN -ZL.-Fifteen |
|
Water evaporation |
5Kg/h |
10Kg/h |
15Kg/h |
|
Minimum feed rate |
80ml |
120ml |
150ml |
|
Drying chamber diameter (mm) |
￠1000 |
￠1200 |
￠1400 |
|
Height of drying tower (mm) |
￠1000 |
￠1200 |
￠1500 |
|
Atomization system |
Dual Gas Delivery (QFN-ZL-NZW3VER2018-1A) |
||
|
Electric control system |

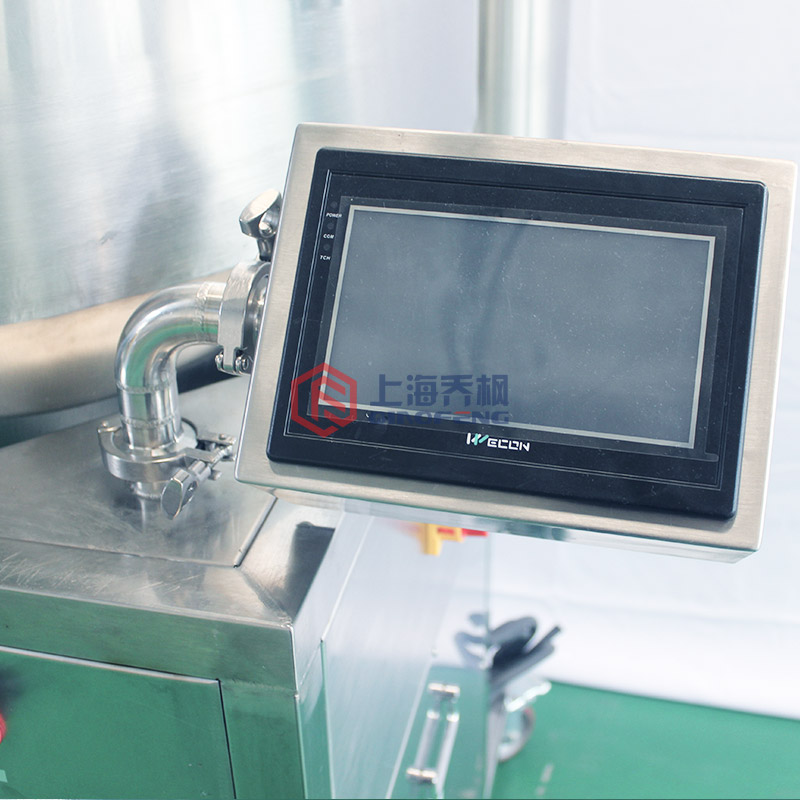

QFN-ZL-ES-VER2018-1A |
||
|
Maximum intake temperature (Celsius) |
Two hundred and sixty |
||
|
Standards for main electronic control accessories (including PLC, analog module, touch screen) (optional) |
Dimension Control Module (Standard)Delta Control Module_German Siemens Control Module |
||
|
Selection Standard for Electronic Control Auxiliary Parts (Contactors, etc.) (Optional) |
Zhengtai (Standard) Delicious Schneider Others________ |
||
|
Contact with material (optional) |
"9745;SUS304 (26631;" 20934; 160;"160;" 160;"SUS316"160;"160;" 160;"D"20854;"20182; |
||
|
Tail gas reuse, energy saving more than 30% (optional) |
Non-assembly (Standard) Assembly |
||
|
Atomizing nozzle (whether diamond coating is used) |
SUS304 (Standard) SUS316 (Standard) SiC (Standard) Diamond |
||
|
Equipment warranty |
_1 year (standard, above need to charge a certain maintenance fee)2 years_3 years |
||
|
Heater capacity |
25Kw |
30Kw |
35Kw |
|
Blower [power (kw), air volume (m/min)] |
nothing |
[0.25,9.5] |
[0.25,9.5] |
|
Induced draft fan [power (kw), air volume (m/h)] |
[1.5，250] |
[2.2，300] |
[2.2，1410] |
|
Compressor [Power (kw), Air Volume (L/min)] |
[0.58，108] |
[1.5，250] |
[1.5，250] |
|
Electricity (installed capacity) |
30Kw |
35Kw |
45Kw |
|
Thermal insulation material |
50mm Glass Fiber Thermal Insulation Cotton |
50mm Glass Fiber Thermal Insulation Cotton |
50mm Glass Fiber Thermal Insulation Cotton |
|
_Pulse bag filter (optional) |
Polytetrafluoro Film Coating Material |
||
|
9 Only |
12 only |
21 only |
|
|
Profile Size (mm) (L *W *H) (Reference) |
1600×1400×1800 |
2200×1600×2200 |
2600×1200×2500 |
|
Installation Weight (Reference) |
500Kg |
1000Kg |
1500Kg |
|
Power Supply |
380V/-3(Relevant voltage can be customized according to different national standards) |
Note 1: Water evaporation to air temperature 250 C,.
2: If you need more evaporation equipment, please make an online inquiry or call our company.
Tel: 17317246351
